DSD TECH SH-RJ12B USB to RJ12 RJ11 6P4C RS232 Serial Cable

This USB to RJ11/RJ12 RS232 Serial Cable is 1.8 meters (5.9FT) in size.Constructed-in Silicon Labs CP2102N Serial Chip and RS232 Chip,

Specification:
Mannequin: SH-RJ12B
Predominant chip: Silicon Labs CP2102N

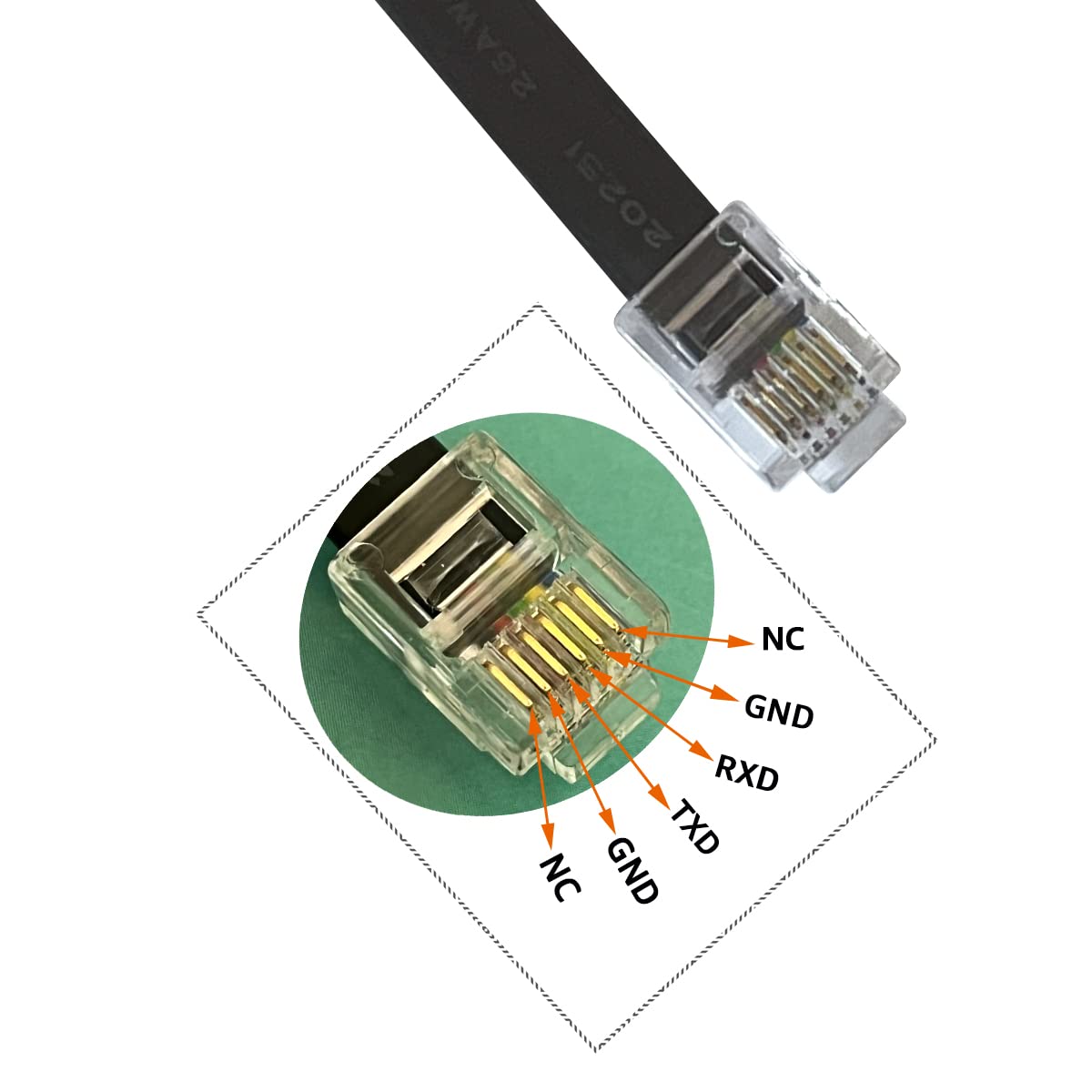

Pin Definition: Gnd,Tx,Rx,Gnd
Communication protocol: RS232
Connectors: USB Kind A, RJ12/RJ11 (6P4C)
The utmost pace: 2 Mbps

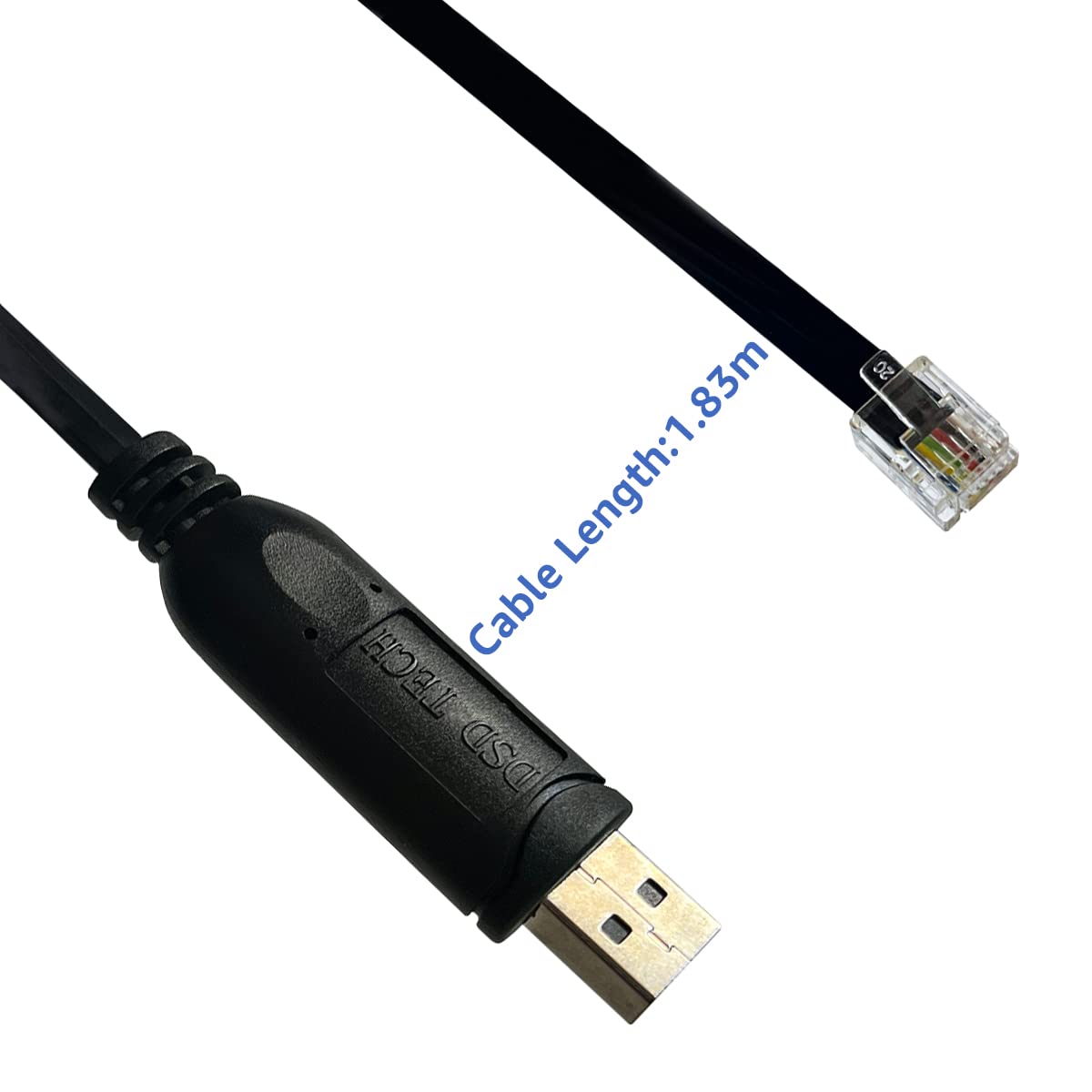

Cable Lenght: 1.8M/5.9 FT
Compatibility；Home windows 7,8,10 Linux OS and Mac OS

Drawback Troubleshooting Steps
1、This product is relevant to the units listed within the product description listing, and rj11/rj12 units supporting rs232 protocol, it can’t be used for radar and money drawers.
2、Please test the pin order of the machine earlier than buy or ask us whether it is relevant to your machine. As a result of the pin order isn’t constant will result in not have the ability to use.
3、This product wants to put in the motive force, please go to the web site within the guide to obtain the motive force.
4、It can’t be used after putting in the motive force, please attempt to restart the machine or re-plug it.

Relevant Tools:

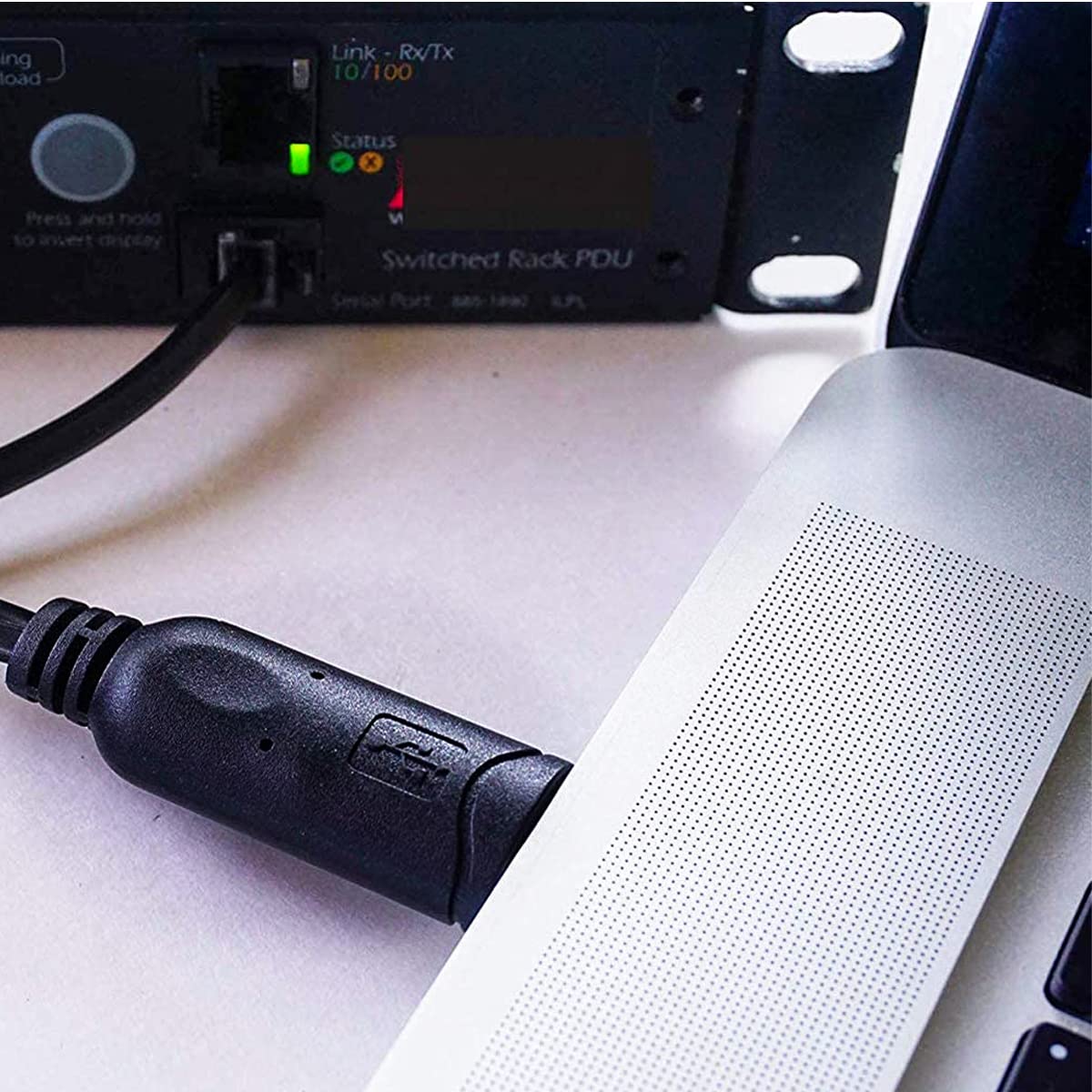

APC Computerized Switch Change:
AP7721, AP7723, AP7730, AP7732, AP7752
APC Rack PDU:
P78xx, AP79xx, AP86xx, AP88xx, AP89xx
Metered-by-Outlet with Switching Rack PDU:
AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681
Metered Rack PDU:
AP7152, AP7155, AP7175,AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820
Metered-by-Outlet Rack PDU:
AP8441, AP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K
Switched Rack PDU:
AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930

Packing listing:
1 X SH-RJ12 USB to RJ12/RJ11 Serial Cable(5.9 Ft)
1 X Consumer Guide

WARRANTY:
DSD TECH gives a 1-year guarantee and lifelong technical help for this USB to RJ12/RJ11 Serial Cable.When you meet any questions, Please contact us, We are going to repair your situation inside 24 hours.

Product dimensions ‏ : ‎ 9.4 x 9.4 x 2.79 cm; 56 Grams
Date First Out there ‏ : ‎ 27 December 2021
Producer ‏ : ‎ DSD TECH
ASIN ‏ : ‎ B09P8D5WL9
Merchandise Mannequin Quantity ‏ : ‎ SH-RJ12B

DSD TECH: DSD TECH focuses on the event of communication connection units corresponding to USB/Serial/Wi-fi. Now we have served greater than 100,000 clients in Europe, North America and Japan.
USB to RJ12/RJ11: RJ12 and RJ11 are the identical on the bodily interface. The distinction is that RJ12 makes use of 6 information traces, whereas RJ11 makes use of 4 information traces.This cable results in 4 alerts: GND, Tx, RX, GND.
Silicon Labs CP2102N:CP2102N is an upgraded model of CP2102 chip, with the identical excessive efficiency and compatibility as FTDI FT232RL.

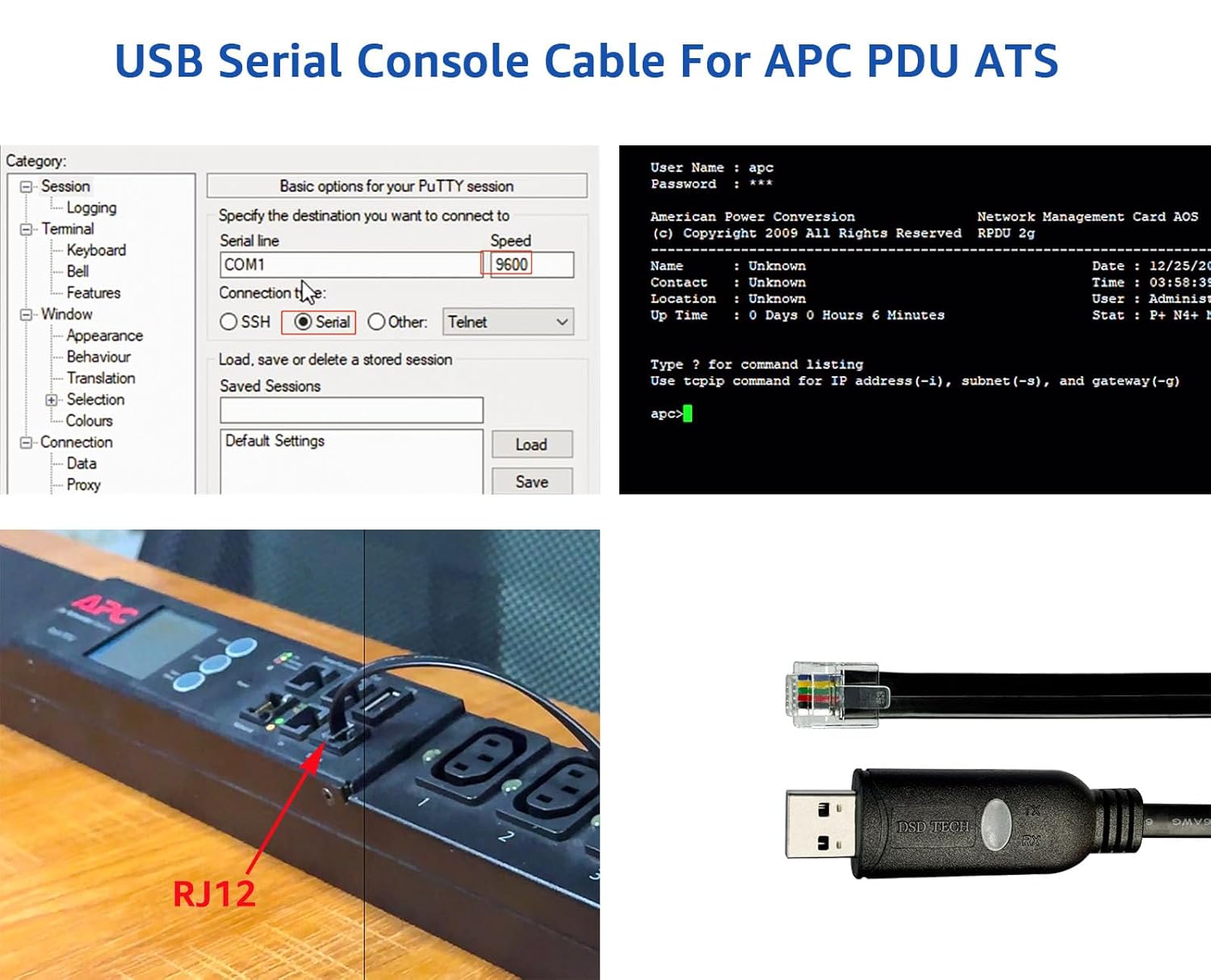

Alternative for APC Half# 940-0144A. Appropriate for the next fashions: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX
Guarantee:DSD TECH present a 1 yr guarantee and lifelong technical help for this USB to RJ12/RJ11 Serial Cable.when you have any questions, please be happy to contact us. We are going to reply inside 24 hours.
