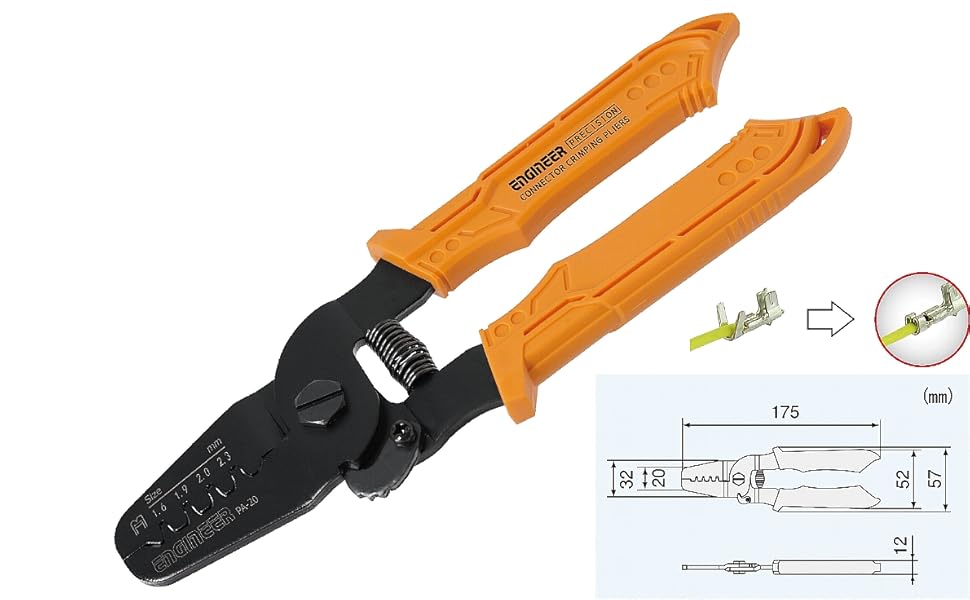

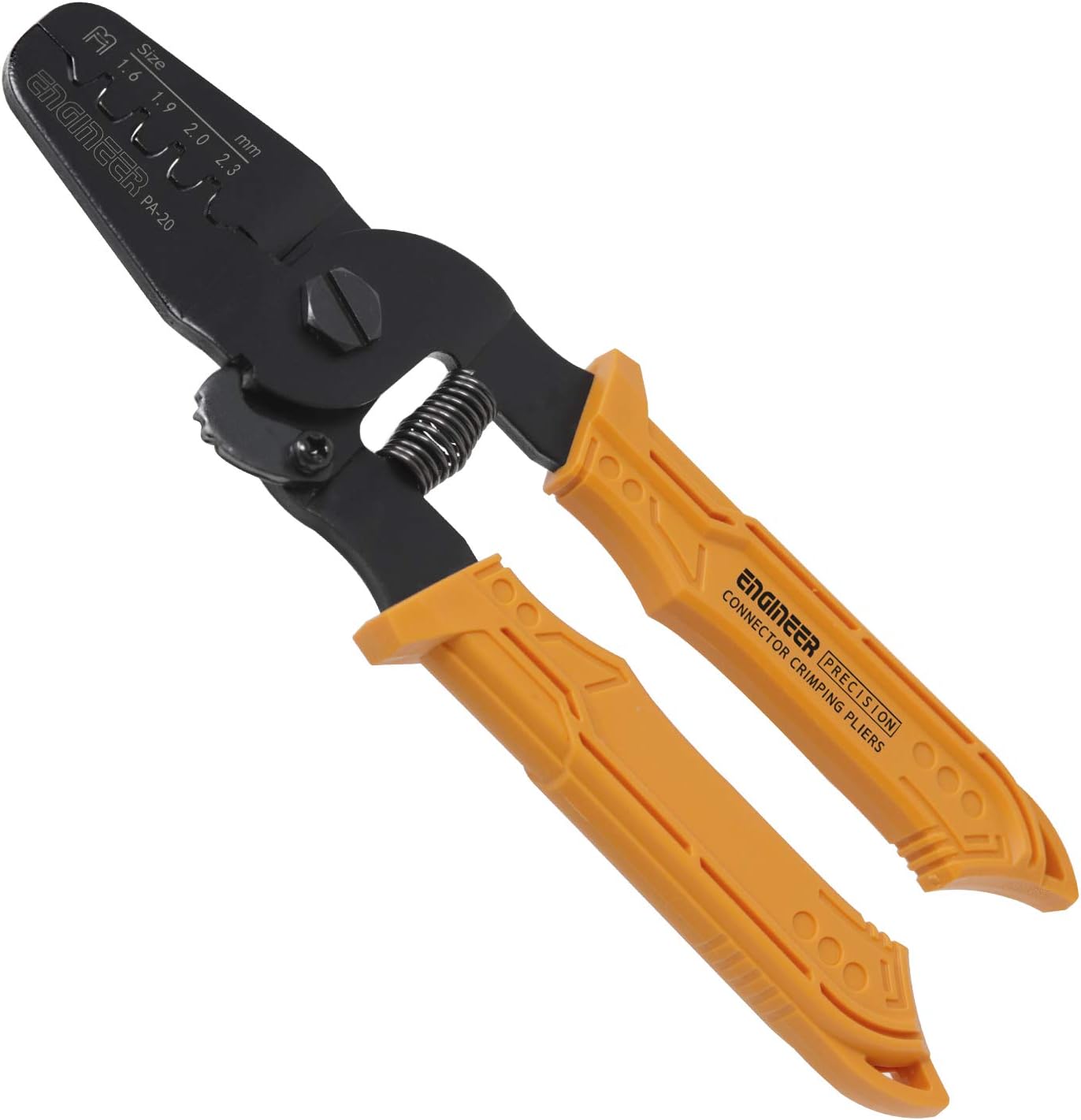

ENGINEER PA-20 Universal Crimping Tool (Made in Japan) for AWG28-18 Open-Barrel JST XH, NH, VH Series, MOLEX KK, Micro-Fit Series, TE Mate-N-LOK, etc, Orange

Product Description

Tremendous Exact Crimping Dies — Open Barrel Contacts crimped in Tidy End!

Engineer Inc. launched the manufacturing and the availability of Multi-purpose Crimp/Stripping Instruments in Japan in Nineteen Seventies. They’ve been having fun with favorable reputations amongst skilled staff in electronics and electrical workshops till right this moment.

The up to date Precision Crimper collection are that includes elaborately designed crimp dies, which give you the uniform high quality and the superb end of the crimped connectors. These days, the merchandise are additionally demanded properly by people obsessed with private interest, PC, RC mannequin, robotics, and so on.

This product can crimp the a part of conductor and the a part of insulation individually. The conductor is crimped firmly and the insulation is crimped softly owing to the gripping pressure adjusted freely.

Options

Prework

First align the sting of each barrels in parallel or barely open whereas urgent them with the pliers jaws.

Conductor Crimp

The wire conductor may be crimped securely.

Insulation Crimp

Elaborately-designed crimping dies – Curl up the insulation barrels very tidily.

* Guarantee that the handles usually are not squeezed in extra, which can tear the insulation.

2.5mm Thicker Crimp Dies

PA-20 options 2.5mm-thick dies. It really works with a prolonged wire lug (barrel) in addition to a tiny lug.

Specs

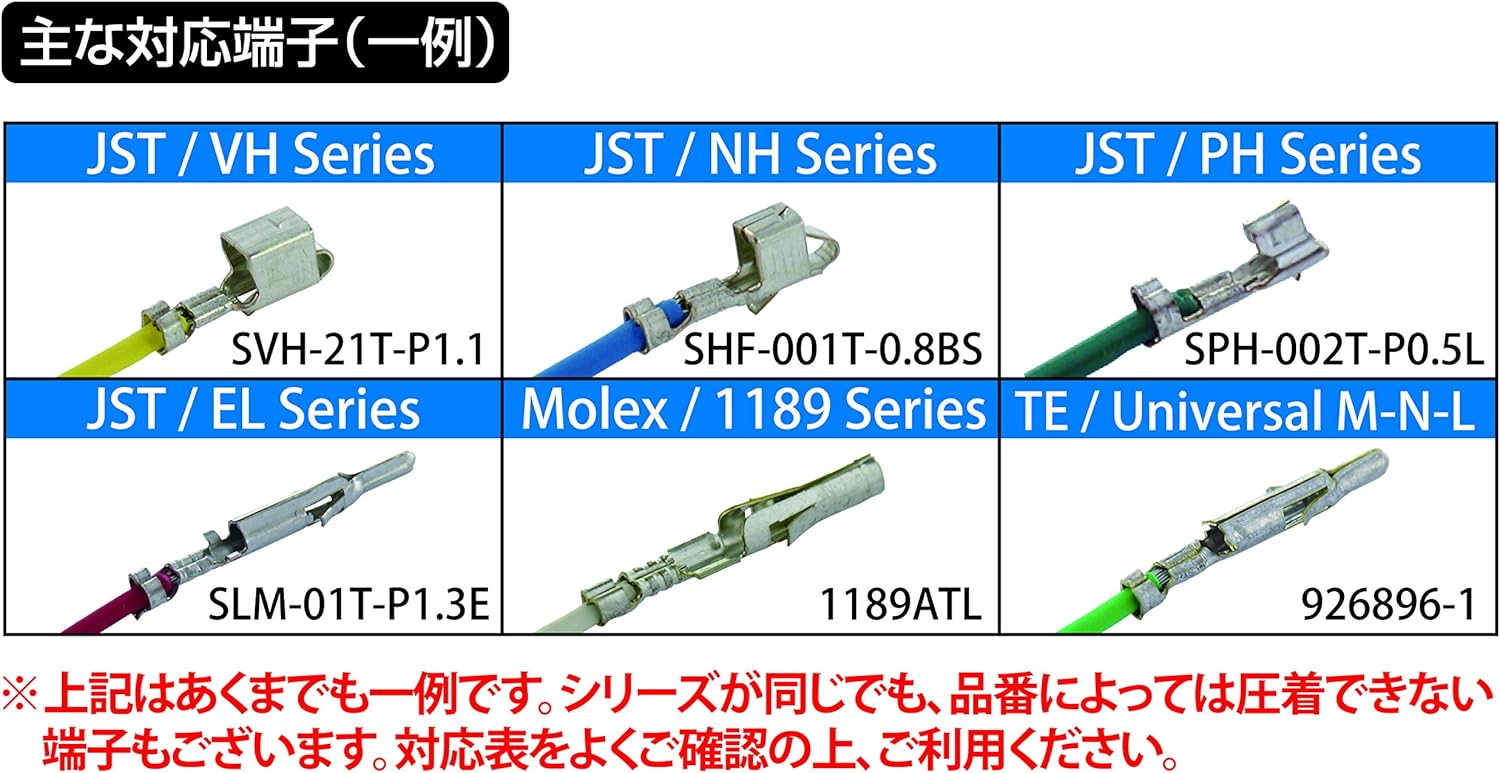

completely crimps pins corresponding to JST XH, NH, VH collection, MOLEX KK, Micro-Match collection, TE MATE-N-LOK, and so on.
crimp AWG28~18 wires throughout 100 totally different pins (& D-SUB connector contacts) from the primary crimp pin producers
bigger die thickness (2.5mm) – preferrred for crimping connectors whose wire barrels (crimp lugs) are longer in size
able to crimping 2.5mm to five.0mm pitch connector pins (common sort)

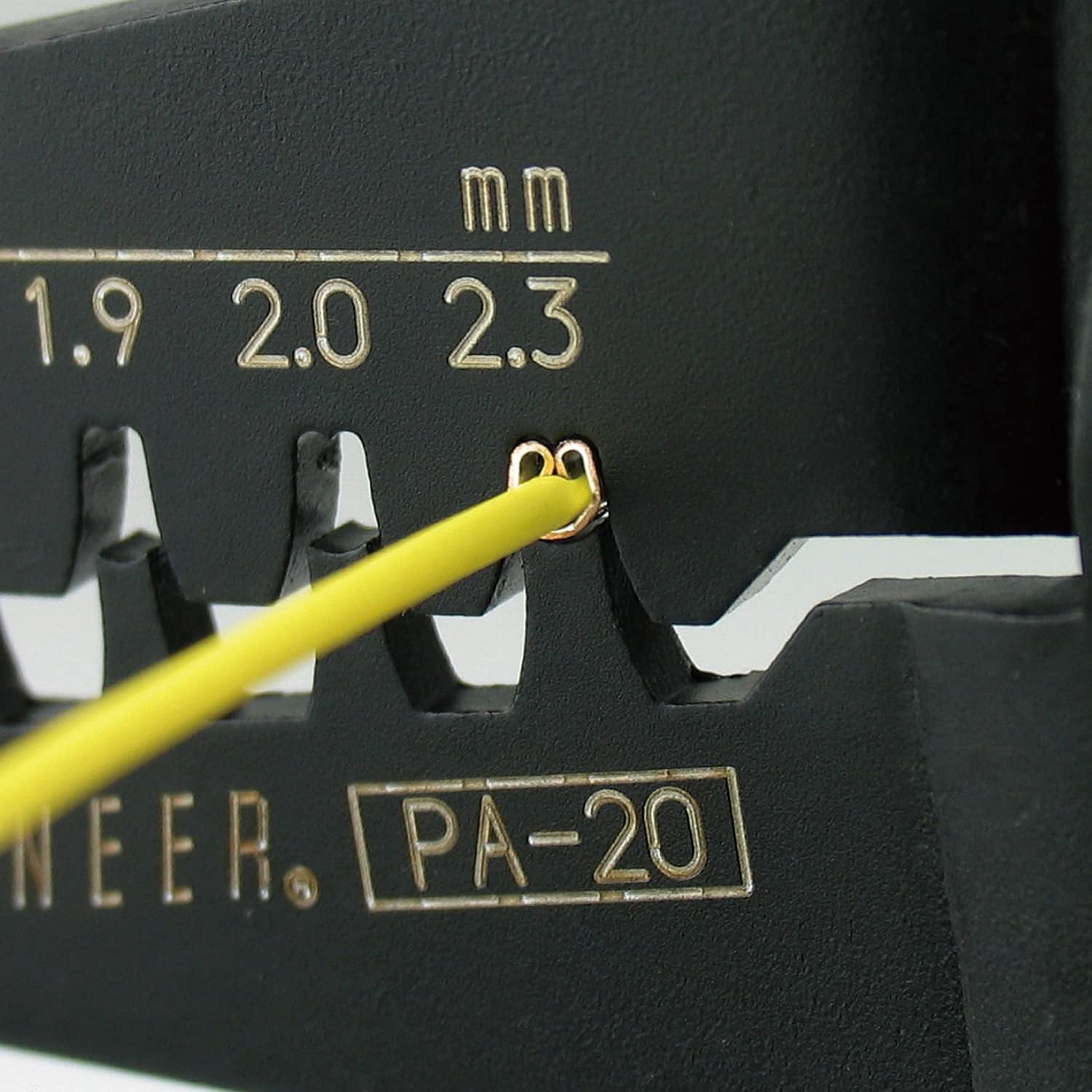

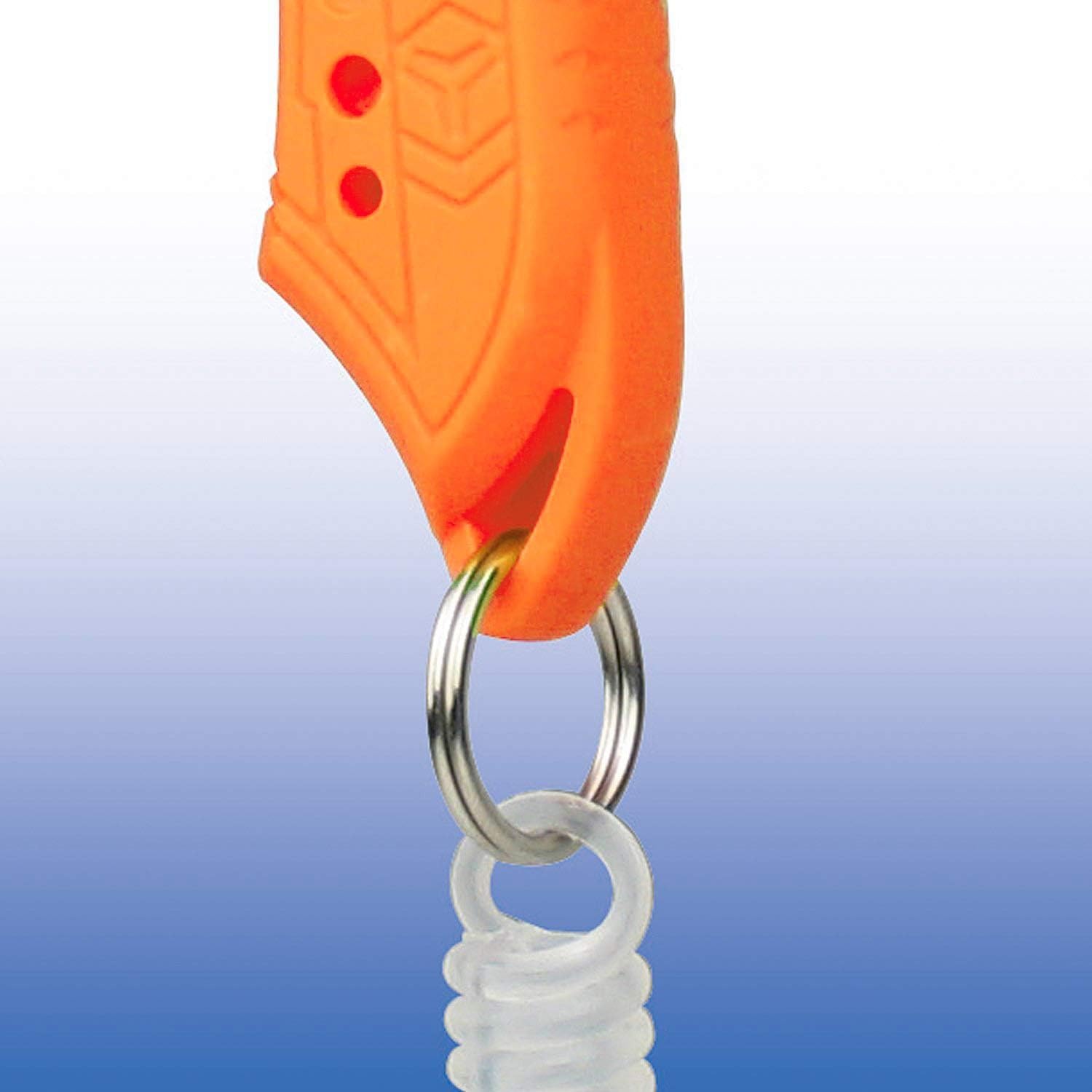

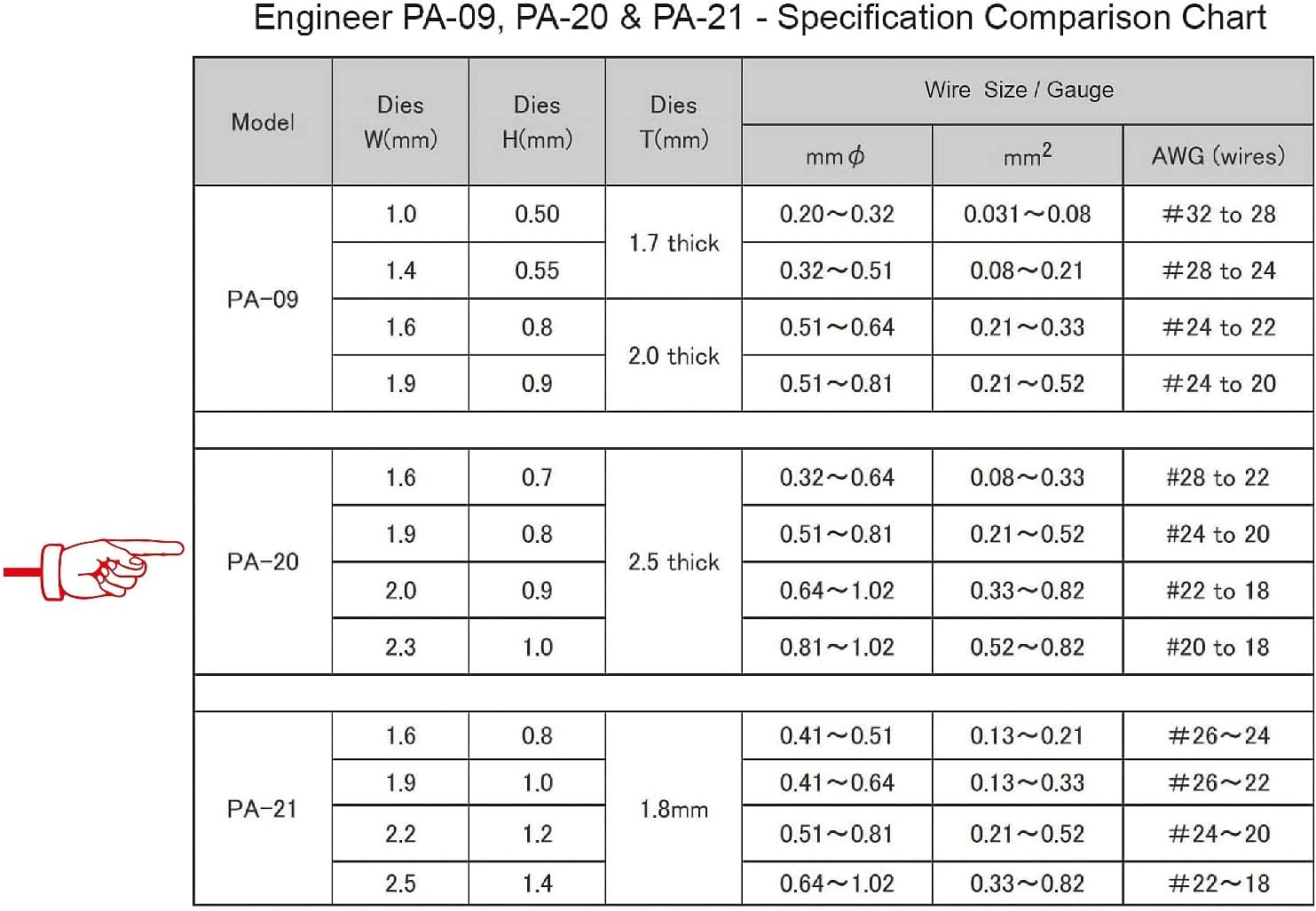

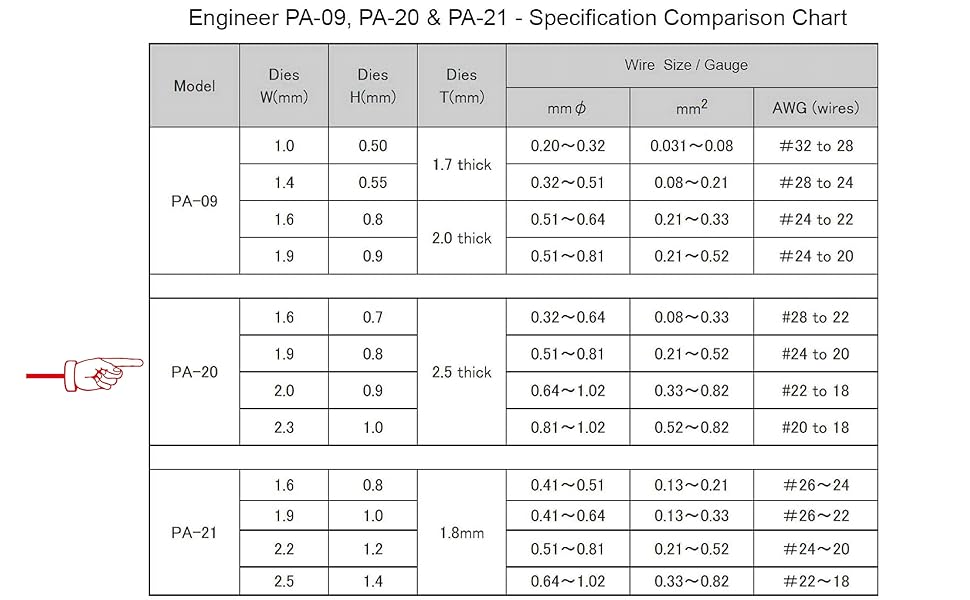

4 totally different crimping die widths, 1.6mm, 1.9mm, 2.0mm & 2.3mm.skilled outcomes (& at a fraction of the worth as charged by the Pin Distributors for his or her particular crimping instruments).spring loaded handles for simple operation (handles latch shut for storage).oil-resistant TPR (thermoplastic rubber) grips for unmatched consolation (strap holes at finish of handles).gentle & compact physique for fatigue-free work -(authentic joint-screw by “ENGINEER” permits for fast & straightforward maintece).
