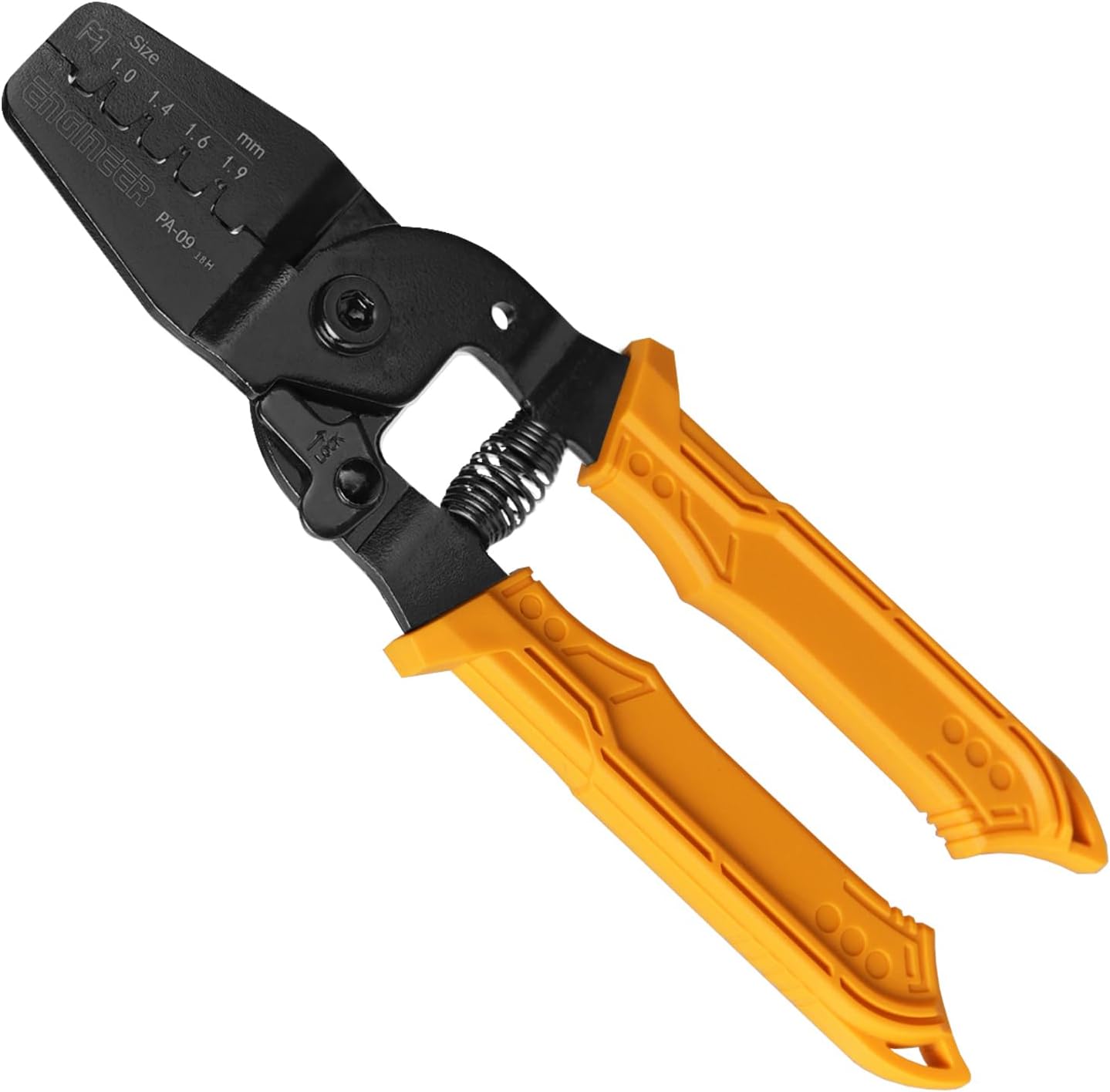

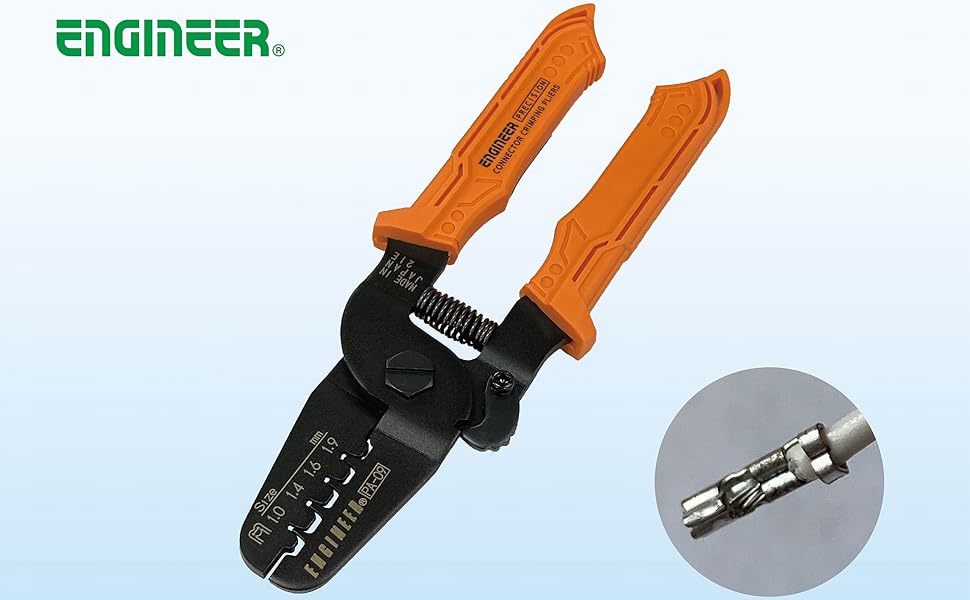

ENGINEER Universal crimping tool for crimping different crimp connectors from major connector manufacturers. PA-09

Product Description

Tremendous Exact Crimping Dies — Open Barrel Contacts crimped in Tidy End!

Engineer Inc. launched the manufacturing and the provision of Multi-purpose Crimp/Stripping Instruments in Japan in Seventies. They’ve been having fun with favorable reputations amongst skilled employees in electronics and electrical workshops till at the moment.

The up to date Precision Crimper collection of “ENGINEER” Pliers are that includes elaborately designed crimp dies, which give you the uniform high quality and the wonderful end of the crimped connectors. These days, the merchandise are additionally demanded nicely by people captivated with private interest, PC, RC mannequin, robotics, and so on.

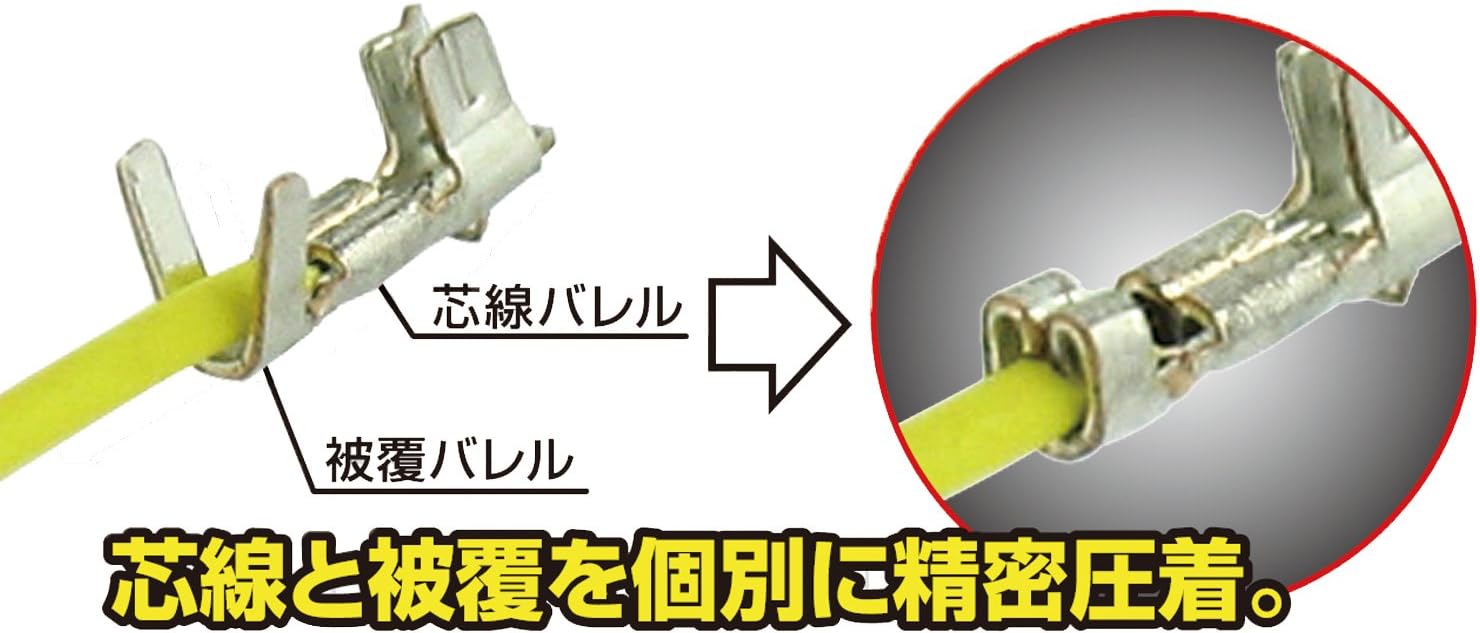

The ENGINEER Crimping Pliers can crimp the a part of conductor and the a part of insulation individually. The conductor is crimped firmly and the insulation is crimped softly owing to the gripping pressure adjusted freely.

Options

Prework

First align the sting of each barrels in parallel or barely open whereas urgent them with the pliers jaws.

Conductor Crimp

The wire conductor might be crimped securely.

Insulation Crimp

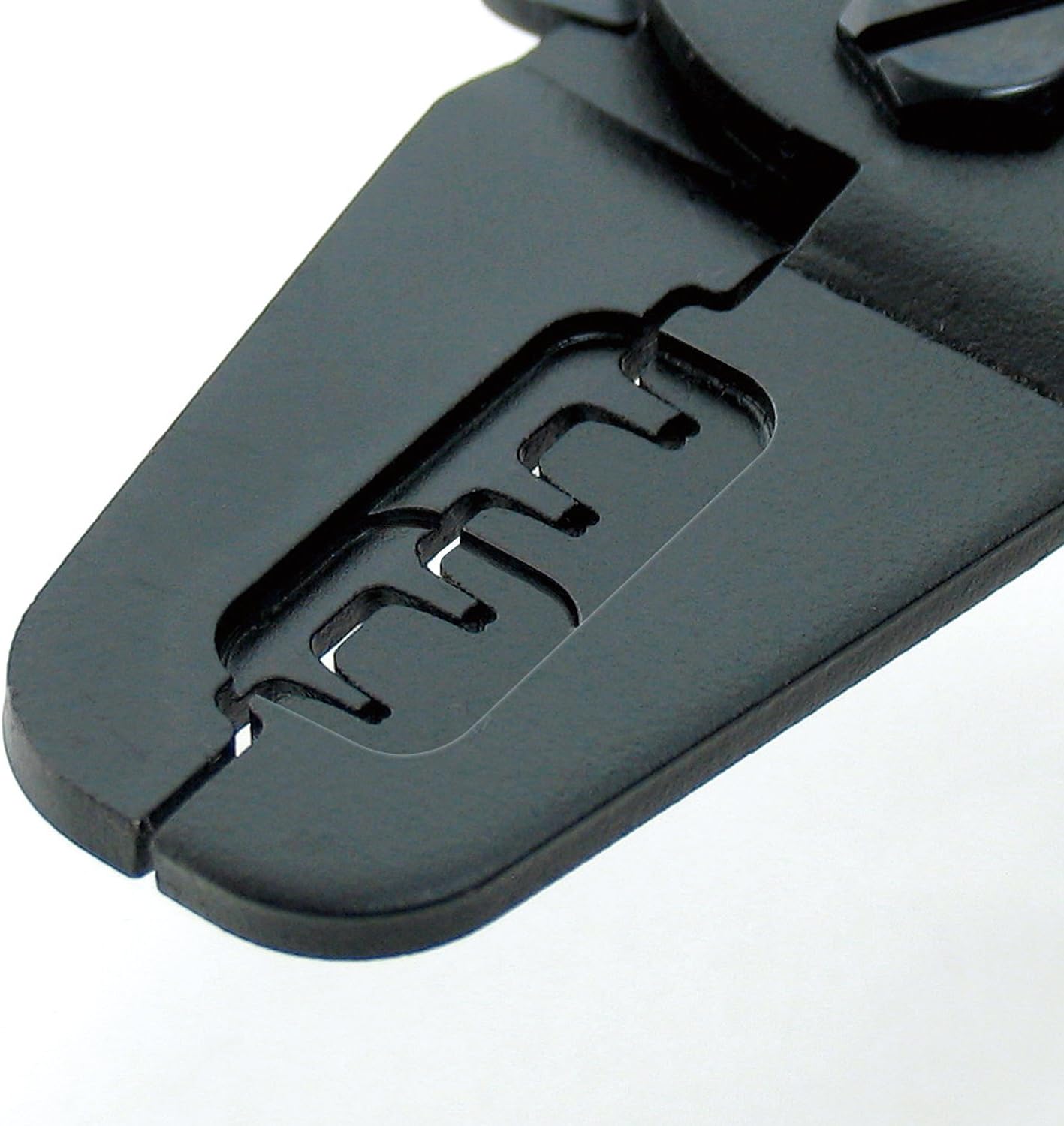

Elaborately-designed crimping dies – Curl up the insulation barrels very tidily.

* Guarantee that the handles will not be squeezed in extra, which can tear the insulation.

Spring & Stopper loaded

Probably the most of crimping pliers out there out there wouldn’t have a spring. A coiled spring is loaded on PA-09, useful for repeated and fatigue-free work.

Geared up with a locking latch, too.

Specs

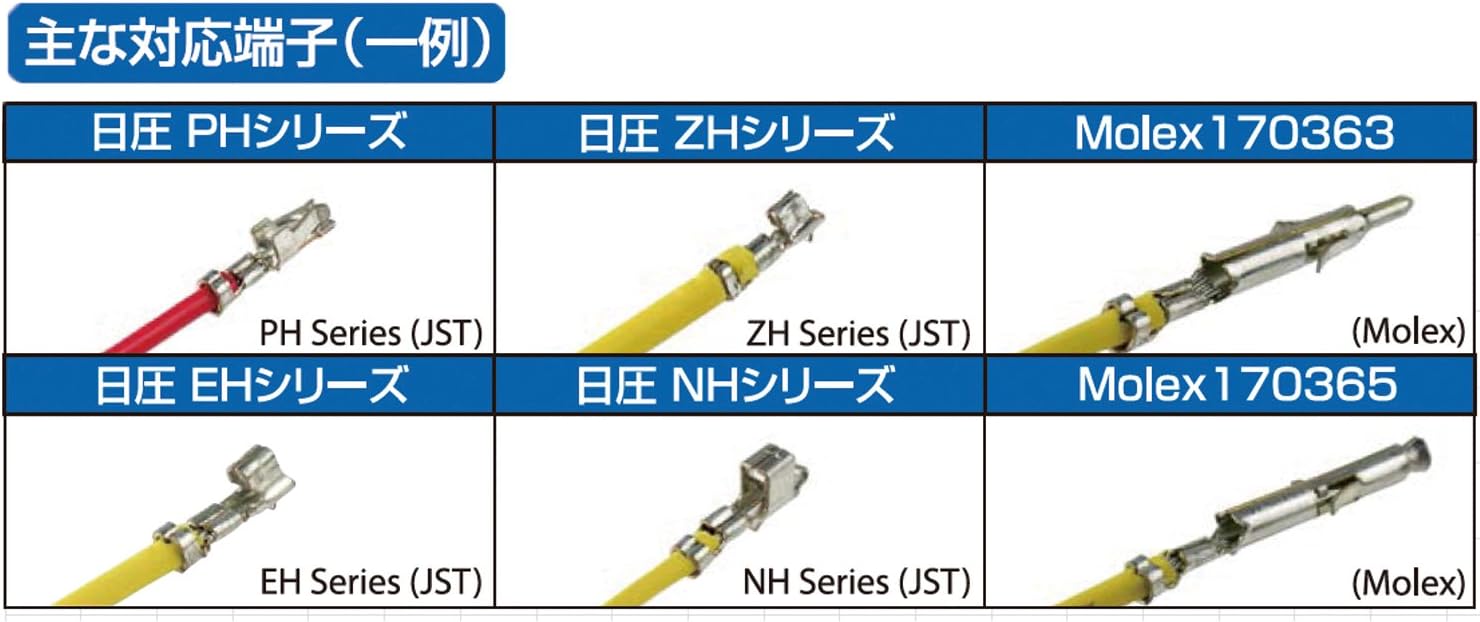

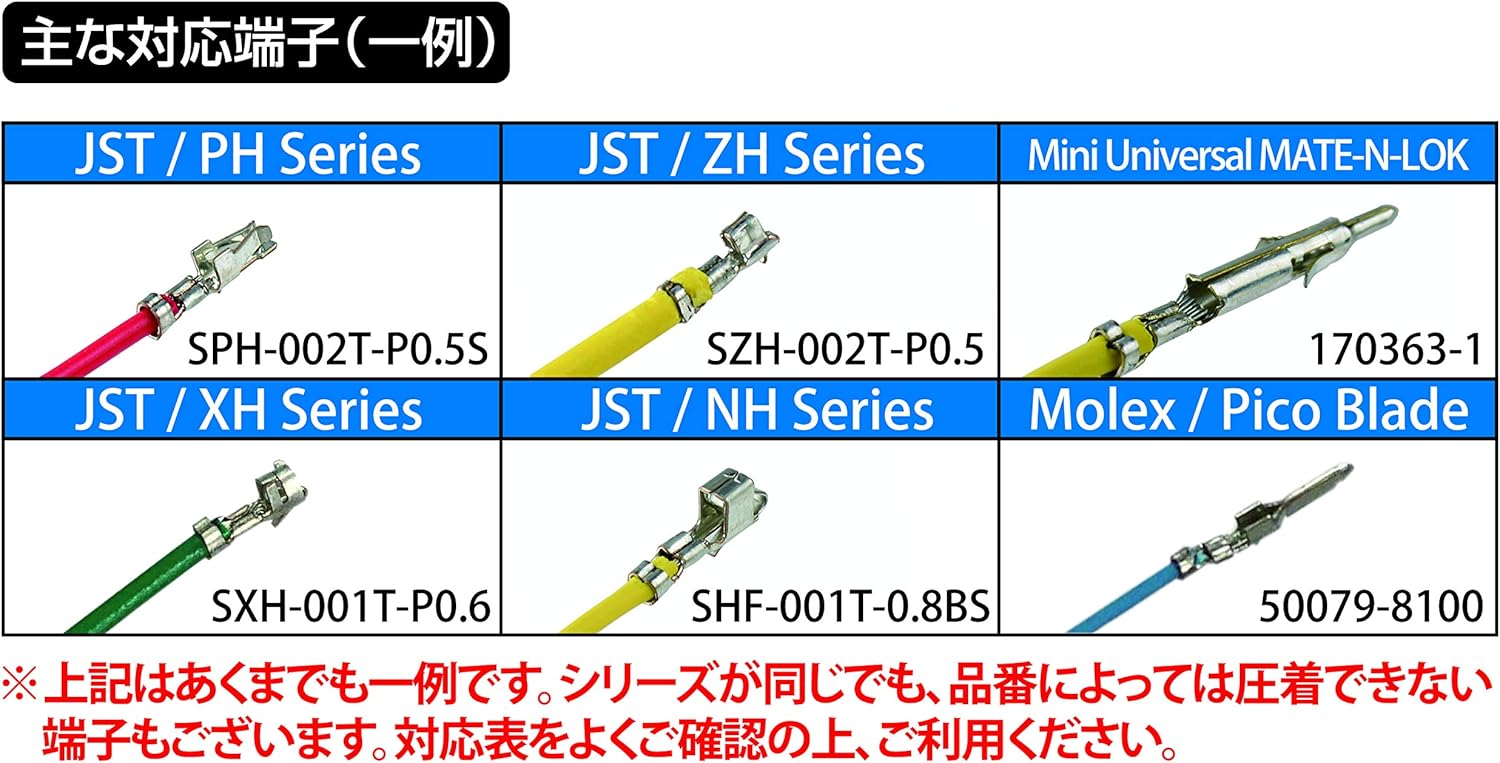

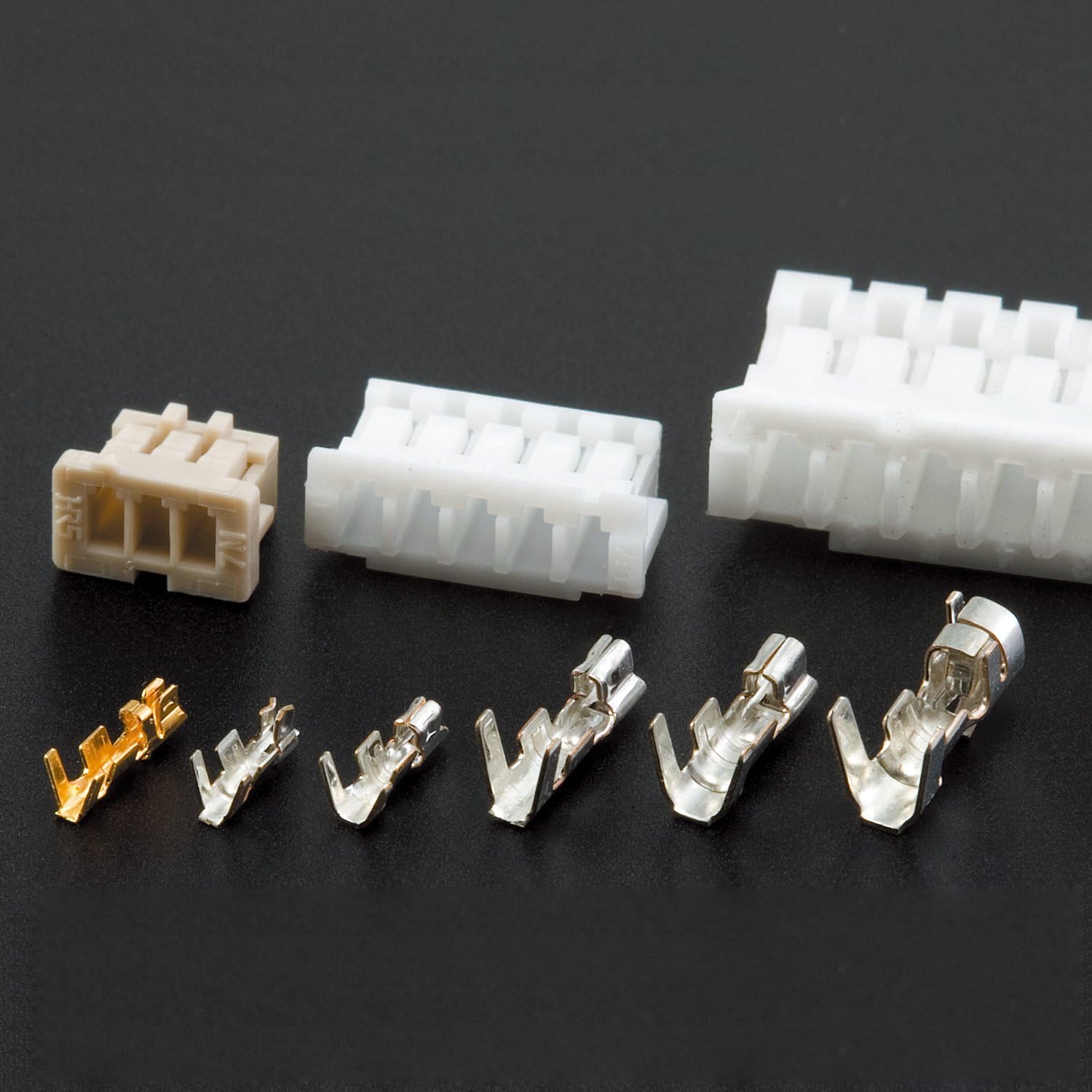

Completely crimps pins comparable to JST ZH, PH, XH, SH/SHL collection, MOLEX KK, Picoblade collection, and so on.

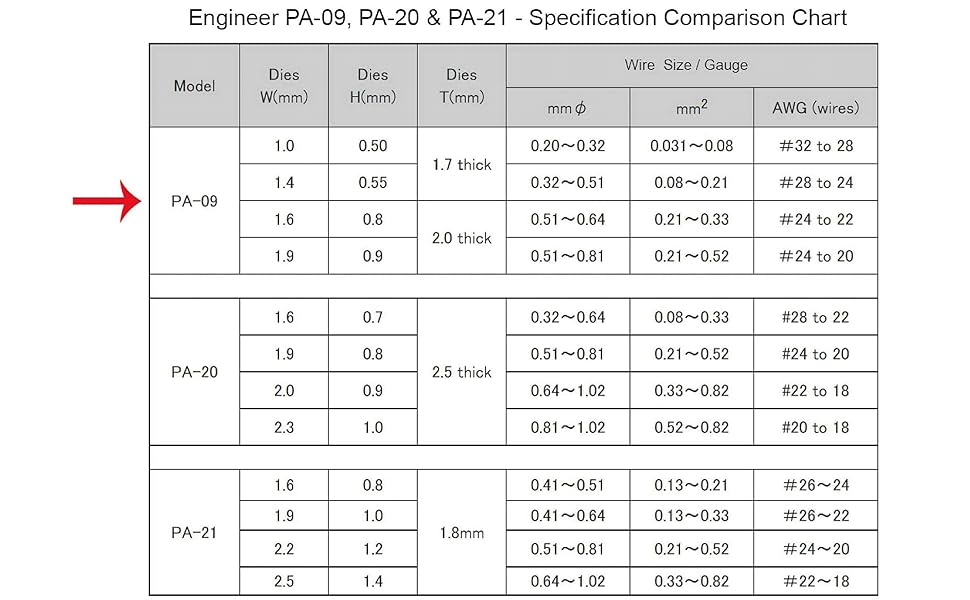

crimps AWG32~AWG20 wires throughout 80 totally different pins (& D-SUB connector contacts) from the principle crimp pin producers
skilled outcomes (& at a fraction of the value as charged by the Pin Distributors for his or her particular crimping instruments)
able to crimping 1.25 to 2.5mm pitch connector pins (narrow-pitch)

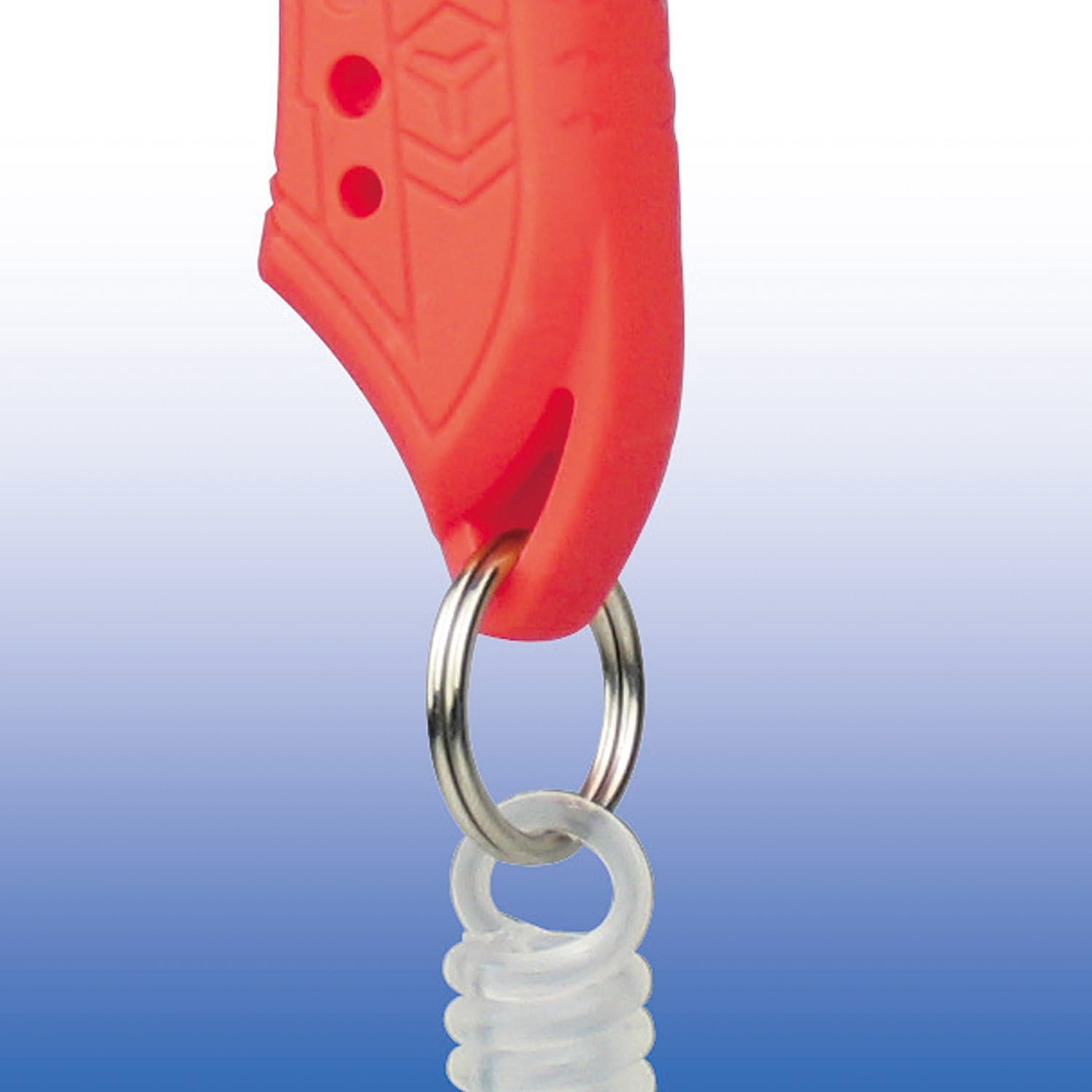

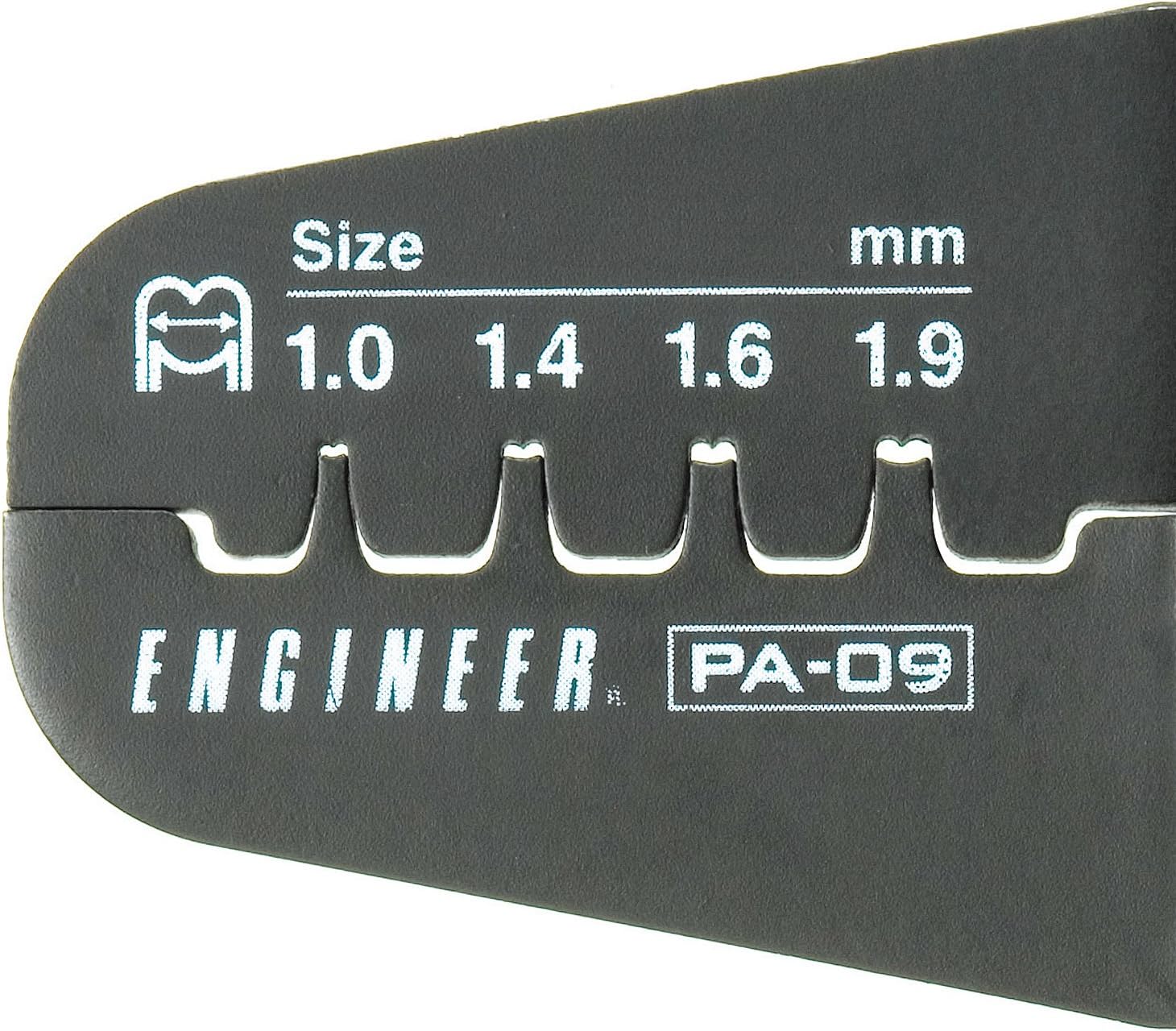

4 crimping die widths – 1.0mm, 1.4mm, 1.6mm & 1.9mm.spring loaded handles for simple operation (handles latch shut for storage).oil-resistant TPR (thermoplastic rubber) grips for unmatched consolation (strap holes at finish of handles).mild & compact physique for fatigue-free work.authentic joint-screw by “ENGINEER” permits for fast & straightforward maintece.made in Japan (ROHS Compliant), constructed from S55C Carbon Metal
